전체 공장 소개

장비운영현황
Dedicated Type
Universal & Flying probe

설비 Model명		Maker	운영용도
BBT 장비	Gats-7Xxx GATS-6310 BCPS-300 MU3012 MU3005 MR 612 - M5 MR 612 - M5R HI POT	Read(일본) Read(일본) Bioptro(한국) MASON(중국) MASON(중국) YAMAHA(일본) YAMAHA(일본) 거산산업(한국)	Package 기판용 Package 기판용 Package 기판용 MLB & 통신 보드 등 제품 검사용 MLB & 통신 보드 등 제품 검사용 FPCB 기판의 양산 검사용 FPCB 기판의 양산 검사용 절연층 SHORT 검사 설비
Flying Probe	Alpha Design FPT 3800 HIOKI-1271 MFP476S(Ultim8) MFP 8800	Alpha Design(일본) HIOKI (일본) Alpha Design (일본) Alpha Design (일본)	SAMPLE 제품 검사용 4단자 / EBD 검사설비 LED용 기판, MLB & Package 기판용 LED용 기판, MLB & Package 기판용

GATS-7712

Test Point

16,384

Test Points

Top 4,096 Points / Bottom: 4,096 Points

Contine Test

5kΩ ~ 100kΩ

Size

1760mm(D) * 1900mm(W) * 1810mm(H)

Laekage Test

10kΩ ~ 100kΩ

Test Voltage

10V ~ 250VOLTS

GATS-7750

Maximum Dimensions

W150 X D250mm

Testing area

W140 X D240mm

Thickness

0.1mm～2.0mm

Alignment Accuracy

±2.5μm

Tester Unit （R-5800i/iX）

OPEN： 1Ω～100KΩ（ DC 1V～250V）（0.5mA～20mA
LEAK：10KΩ～200MΩ（DC10V～250V

Product Size, Weight

Main body： W1530 × D1760 × H1812 mm

GATS-7755

Maximum Dimensions

W150 X D250mm

Testing area

W140 X D240mm

Thickness

0.1mm～2.0mm

The maximum number of points inspection

Max. 16,384point (Top ; QD*2, Bottom;QD*2)

Overall alignment positioning accuracy

Within ± 2.5μm

External equipment, weight

main body: W1530 × D2135 × H1812 mm

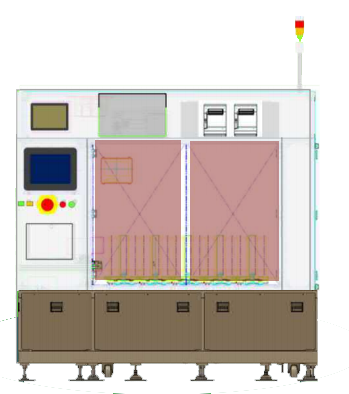

GATS-7512

Min Area

3mm

Max Size

W150 x D250mm ( Test area : W140 x D240mm)

DUT Thinkess

0.1mm ~ 2.0mm

Test Point Standard

R-5810 12K (Top 8K + Bottom 4K)

Test Point Standard

R-5810 12K (Top 8K + Bottom 4K)

Alignment Accuracy

±5.0μm ( Double side alignment)

Tester

R-5810

Open

1kΩ ~ 100kΩ (DC1V ~ 250V)

4 Wire test

0.1mΩ ~ 100Ω (60V / 20mA)

WR u-Short

1MΩ ~ 100MΩ (DC10V)

LEAK

10KΩ ~ 200MΩ (DC10V ~ 250V)

Spark detection

Δ1 ~ Δ99V

MU 3005 EL

Test Speed

4000 ~ 8000 Point / sec

Insuliation testing resistance

1MΩ ~ 100MΩ

Insuliation testing voltage

50V ~ 300V (DC)

Conduction testing

10 Ω ~ 100Ω

Test Point

QD : 393,216 (MAX)

Test Size

650mm x 508 (MAX), 150mm x 150mm (Min)

PCB Thinkness

Manual: 0.1mm ~ 0.8mm Auto: 0.6mm ~ 5.0mm

MU 3012 Universal Tester

Test Speed

4000 ~ 6000 POINT / SEC

Insuliation testing resistance

1MΩ ~ 100MΩ

Insuliation testing voltage

50V ~ 300V (DC)

Conduction testing

10 Ω ~ 100Ω

Test Point

OD : 96000 (MAX)

Test Size

270mm x 190mm (MAX) / 50mm x 50mm (MIN)

PCB Thinkness

Manual: 0.1mm ~ 6mm; Auto: 0.6mm ~ 6mm

Flying Probe

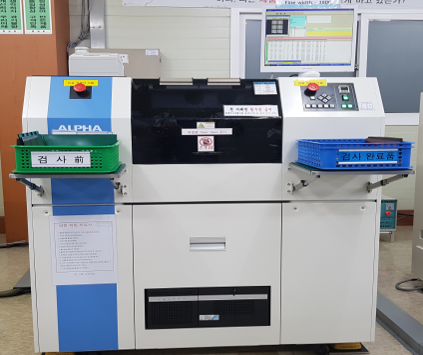

Alpha Design FPT 3800

제품 Size

20~230*260mm

제품 두께

0.05mm~5.0mm

Pattern Pitch

50um, Pad Size : 10um

설비 속도

Max 105 Test Point/Sec

Open Test

Range (1Ω~10MΩ)

Short Test

Range up to 100MΩ Max

Alignment

CCD Camera

Positioning accuracy

±5μm

Pepeatability accuracy

±1μm

HIOKI-1271

Short Circuit

400MΩ 40KΩ

Open Circuit

4Ω to 4MΩ

Minimum Pad Diameter

20um

Minimum Movement Step XY

1.00um/pulse Z : 6.00um/pulse

Prove Work Area

W610 * D510mm

Isolation test

Maximum500MΩ

용량 측정

5 af 고분해가능

다양한 전기 측정 가능

MFP476S (UItim8)

Maximum test area

686 X 585 mm

Board size

50 x 50mm(min)
736 x 610mm

Test voltage

Maximum 500 V

Test current

2 ~ 100mA

Continuity test

1Ω - 10KΩ

Isolation test

Maximum500MΩ

Input format

IPC D 356A / MNF

Test speed

5,000 point/min

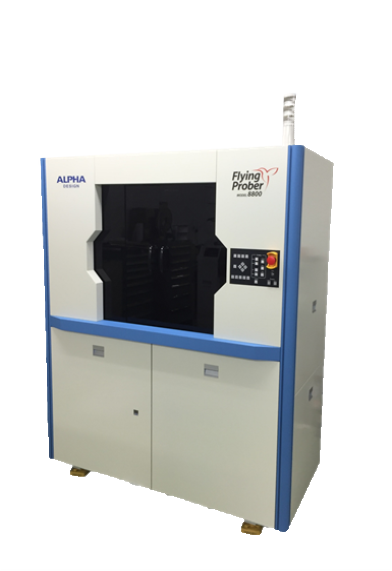

MFP 8800

Dimensions

1,560(w) x 850(d)x1,900(h)

Weight

1,250 Kg

Power requirements

AC200V±10% 3Φ 30A

Probe Heads

Test Area

510mmx610mm

Thickness

0.5mm ~ 10mm

Pad/Pitch Size

20 / 40 μm

Positioning repeatability

±1μm

Camera

2M Pix Digital x 4

Camera Resolution

1.1 μm/Pix

measurement

CMJ5

Z Axis Resolution

1.0 μm/pulse

test

Insulation (IMJ) : 1000MΩ (1000V)
resistance 2W : 1Ω-1GΩ
Low resistance 4WK : 0.1mΩ - 100KΩ
Capacitance : 1F -10mF

MX1-24 (Schmoll)

Positioning accuracy

+/-4μm

Spindles RPM

20,000 ~ 125,000

Drilling accuracy

+/-20μm

Maxium panel size

665 * 650 mm

Depth accuracy

+/-12μm

Short Test

Range up to 100MΩ Max

Premium 600C / (주)인텍MS

검사영역

600 (X) x 500 (Y) x 150 (Z) mm

이동 속도

DC servo 모터드라이브

영상 확대

영상 확대 배율 : 0.58x ~ 7.0x (시스템 배율 : 20x ~ 245x)

장비능력

10kΩ ~ 100kΩ

Test Voltage

10V ~ 250VOLTS

TL-RU-6EL

Machine Dimension

4520 * 2110 * 2240mm (L*W*H)

Spindle type / Speed

Ball Bearing / 15,000rpm ~ 50,000rpm

Working Area

567 * 830mm

Linear Scale Resolution

0.001mm

Routing Accuracy

567 * 830mm

Bit Applied

0.001mm

Air Requirement

6.5kg/cm2

Vacuum Requirement

-1500mmH20 7m2/min

Power Requirement

220V or 380V

TMSTER-7165

설비규격

10,610 * 2600 * 1300mm (L * W * H)

작업최소 규격

200 * 200mm MIN, 535 * 681mm MAX

기존두께

1.5T ~ 5.0 T

반응속도 가변범위

0 ~ 5.0m/min

전기량

AC 380V 3상 4선식 / PUMP / MOTHER / HEATER 총량 79.06KW

CONVEYOR 구동방식

헬리켈 구동 / 건조부 자석구동 / 상(PE), 하(PP)

슈몰

Max size

544 x 650 mm

Spindle

X, Y speed

75m / min

Z speed

25m / min

Positioning accuracy

Cpk tolerance ±20μm

Depthdrilling accuracy

With CBD ± 12 μm

With 2nd measurement system ± 20 μm
